Legrand PT5362AW

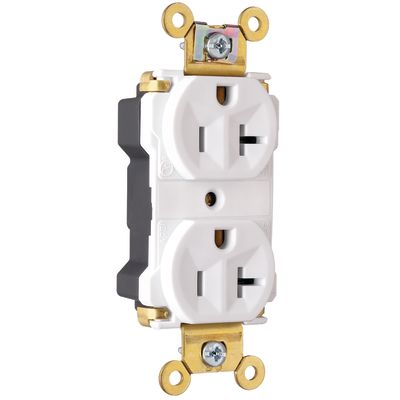

Pass & Seymour PlugTail PT5362AW Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Receptacles
6315522 PT5362AW
Legrand
$0.00 / ea

Legrand PT5362AW
  • Amperage Rating: 20
  • Color: White
  • Dimensions: 1.625 in L x 0.866 in W x 3.281 in H
  • Grade: Commercial/Specification
  • Material: Nylon
  • Nema Rating: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 60
  • terminal type: PlugTail Lead
  • Type: Duplex Extra Heavy Duty
  • Voltage Rating: 125
PlugTail Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle 20amp 125volt White
QTY
Add to Wishlist
  • Features
  • Exclusive patented feature, circuit label on face allows permanent circuit identification
  • Auto-ground clip assures positive ground
  • No exposed terminals create a finger safe application before, during and after installation
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
  • Crimped and welded contacts
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL listed and finger safe housing
  • Large brass contacts snugly terminate on device blade terminals
  • 0.036 in THK, brass triple wipe power contacts for lasting retention
  • 2-drive screws anchor strap to back body and face
  • Strap tabs wrap-around and lock down on face to prevent strap from separating from face and back body
  • Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
  • Withstands 2000 VAC minimum dielectric voltage
  • Copper conductor, 6 in leads, stripped, solid or stranded, for use with PlugTail® receptacles only
  • -40 to 60 deg C without impact continuous operating temperature
  • Exclusive patented feature, circuit label on back allows permanent circuit identification
