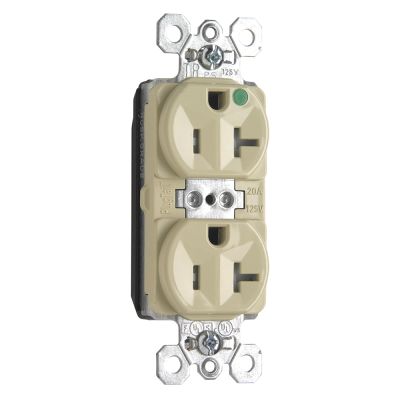

Legrand PTTR8300I
Pass & Seymour PlugTail PTTR8300I Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Receptacles
7468766
PTTR8300I
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Ivory
- Dimensions: 1.5 in L x 0.625 in W x 3.281 in H
- Grade: Commercial/Hospital
- Material: Nylon
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Back/Side Wire
- Type: Duplex Tamper-Resistant
- Voltage Rating: 125
Hospital Grade Duplex Receptalces, 20 Amp, Ivory
- Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Auto-ground clip assures positive ground
- 3-drive screws anchor strap to back body and face
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Plated steel wrap strap design for maximum durability and corrosion-resistant
- 0.036 in THK, brass triple wipe power contacts for lasting retention
- No exposed terminals create a finger safe application before, during and after installation
- Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL listed and finger safe housing
- Large brass contacts snugly terminate on device blade terminals
- Crimped and welded contacts
- Pre-stripped connector leads fasten to conductors, easier than standard pigtails
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- -40 to 60 deg C without impact continuous operating temperature
- Exclusive patented feature, circuit label on back allows permanent circuit identification
- Withstands 2000 VAC minimum dielectric voltage
