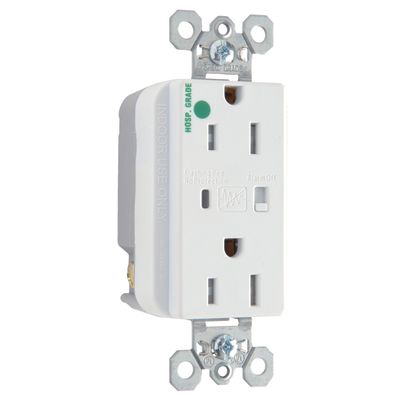

Legrand TR8200WSP

Pass & Seymour TR8200WSP Duplex Extra Heavy Duty Surge Protective Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
Receptacles
7462810 TR8200WSP
Legrand
$0.00 / ea

Legrand TR8200WSP
  • Amperage Rating: 15
  • Color: White
  • Dimensions: 1.75 in W x 0.94 in D x 3.82 in H
  • Enclosure: NEMA WD-1/WD-6
  • Frequency Rating: 60
  • Grade: Hospital
  • Material: Nylon/Thermoplastic
  • Nema Rating: NEMA 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -4 to 131
  • terminal type: Back/Side Wire
  • Type: Duplex Extra Heavy Duty Surge Protective Tamper-Resistant
  • Voltage Rating: 125
Tamper-Resistant Hospital Grade Extra Heavy-Duty Surge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). Back and, Side Wire, 15amp 125volt, White.
QTY
Add to Wishlist
  • Features
  • Dual mechanical shutter system to help prevent insertion of foreign objects
  • Auto-ground clip assures positive ground
  • Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
  • Backed-out tri-drive brass terminal screws for faster installation
  • Internal screw pressure plate back and side wire capability
  • 2-drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly
  • 0.032 in THK, brass triple wipe power contracts for lasting retention
  • Two back wire holes for additional wiring flexibility
  • Extra heavy duty surge protective duplex receptacle offers increased transient protection, reliability and protection notification (audible alarm with LED indicator)
  • 130 VAC, 17 mm dual pack MOV rating
  • 500 VAC suppressed voltage
  • 340 J energy rating
  • 24 kA surge capability
  • Normal mode (L-N) 500 VAC clamping, common mode (L-G) 500 VAC clamping, (N-G) 500 VAC clamping protection modes
  • Three thermal fuses (128 deg C)
  • Brass hot, nickel neutral, green ground color for terminal identification
  • Ratings are a permanently marked on the device
  • -40 to 85 deg C storage temperature
  • UL 92-V-2 flammability rating
