Legrand TR8300HBK

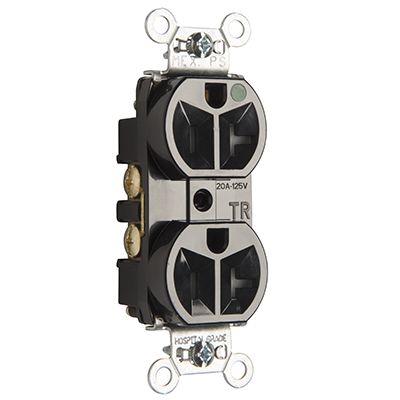

Pass & Seymour TR8300HBK Duplex Heavy Duty Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Black
Receptacles
7409390 TR8300HBK
Legrand
$0.00 / ea

  • Amperage Rating: 20
  • Color: Black
  • Dimensions: 3.281 in H x 1.322 in W x 0.78 in D
  • Grade: Hospital
  • Material: Thermoplastic
  • Nema Rating: NEMA 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Temperature Rating: -40 to 60
  • terminal type: Back/Side Wire
  • Type: Duplex Heavy Duty Tamper-Resistant
  • Voltage Rating: 125
20A 125V Hospital Grade Tamper-Resistant Compact Outlet Black
  • Features
  • Impact resistant nylon face
  • 1-piece heat treated triple wipe brass power contact
  • Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
  • Corrosion resistant, zinc plated steel strap is locked in
  • Internal screw pressure plate back wire and side wire line terminals accept 14 to 10 AWG copper or copper clad conductors
  • High strength thermoplastic back body
  • Auto-ground clip assures positive ground
  • Compact design for easy installation
  • Tri-drive terminal and mounting screws
  • Meets National Electrical Code tamper resistant requirements
  • Protects children - patented shutter system helps prevent improper insertion of foreign objects
  • 0.032 in THK brass triple wipe power contacts for lasting retention
  • Terminal compartments isolated from each other for positive conductor containment
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
  • Terminal identification in accordance with UL498 (brass, white, green)
  • UL 94-V2 flammability rating
