Woodhead 64W47

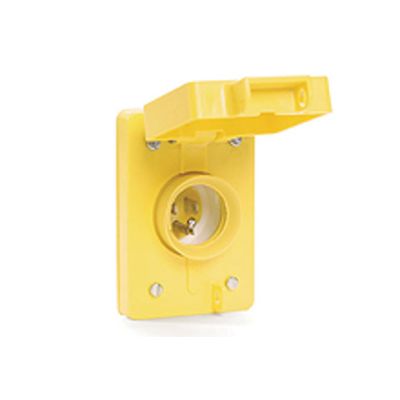

Woodhead reg; Watertite reg; 64W47 130146 Male Locking Blade Receptacle With Single Flip Coverplate, 125 VAC, 15 A, 2 Poles, 3 Wires, Yellow
Receptacles
6855723
64W47
Woodhead
$0.00
/ ea
- Amperage Rating: 15
- Color: Yellow
- Cord Diameter: 0.062 to 0.625
- Enclosure: NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67
- Horsepower: 1/2
- Material: NEoTEX® Paracril OZO Rubber
- Nema Rating: NEMA L5-15
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130146
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Male
- Voltage Rating: 125
Woodhead® Watertite® Locking Blade Receptacle, Male, Series: 130146, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA L5-15 Rating, NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67 Enclosure, 0.062 to 0.625 in Diameter Cord, -40 to 75 deg C, Screw Terminal, NEoTEX® Paracril OZO Rubber, Yellow
- Features
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 3-piece strain relief seals cord without damaging the cord
