Woodhead 67W48

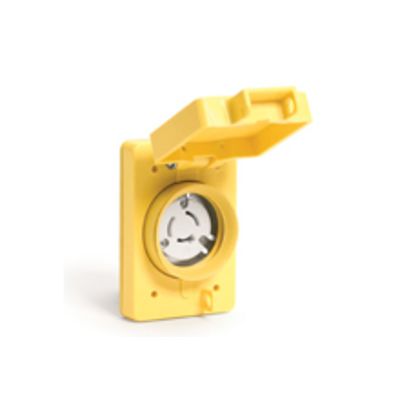

Woodhead reg; Watertite reg; 67W48 130147 Female Single Locking Receptacle With Single Flip Coverplate and Locking Blade, 250 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Receptacles
429281
67W48
Woodhead
$0.00
/ ea
- Amperage Rating: 20
- Color: Yellow
- Enclosure: IP67
- Nema Rating: NEMA L6-20
- Number of Poles: 2
- Number Of Wires: 3
- Series: 130147
- Temperature Rating: -40 to 75
- terminal type: Screw
- Type: Female Single
- Voltage Rating: 250
Woodhead® Watertite® Locking Receptacle, Female Single, Series: 130147, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA L6-20 Rating, IP67 Enclosure, -40 to 75 deg C, Screw Terminal, Yellow
- Features
- Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
- Color coded 1/4 in terminal screws preset in open position, ready to wire
- Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
- Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- Three piece strain relief seals cable without damaging the cable
