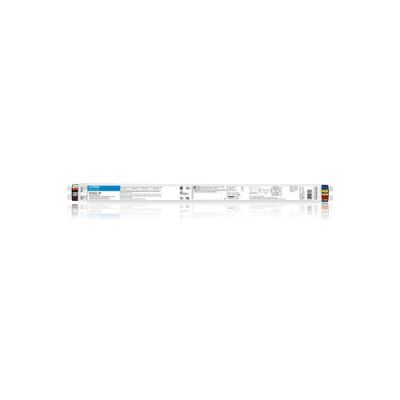

Lutron H3DT524CU210

Hi-Lume 3D H3DT524CU210 Electronic Dimming Ballast, T5HO Linear Fluorescent Lamp, 24 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor
Ballasts, Starters and LED Drivers
7273552 H3DT524CU210
Lutron
$0.00 / ea

Lutron H3DT524CU210
  • Amperage Rating: 0.46/0.23/0.2
  • Ballast Factor: 1
  • Dimensions: 18 in L x 1 in W x 1.18 in H
  • Dimmable: Yes
  • Frequency Rating: 50/60
  • Lamp Type: T5HO Linear Fluorescent
  • Lamp Wattage: 24
  • Minimum Starting Temperature: 10
  • Mounting Type: Threaded
  • Number of Lamps: 2
  • Power Factor: >0.95
  • Start Type: Programmed/Rapid
  • Thermal Protection: Class P
  • Total Harmonic Distortion:
  • Type: Electronic
  • Voltage Rating: 120/240/277
  • Wattage: 54.6/55.2/55.4
Hi-lume 3D 1 percent 3-Wire and EcoSystem Digital Link Controlled T5 HO Linear, 2 lamps, 24W
QTY
Add to Wishlist
  • Features
  • Hi-Lume® 3D ballasts deliver high dimming ratios and efficiency in a slim-profile enclosure, making it a great choice for low-profile architectural fixtures
  • Because Hi-Lume® 3D is microprocessor-controlled, it can operate on the EcoSytem digital control bus and has the ability to listen, think, decide and remember, this provides a new level of flexibility in configuring lighting while saving energy
  • Continuous, flicker-free dimming from 100% to less than 1% for T8, 1% for T5 and T5-HO and 5% for T5 Twin-tube
  • Programmed rapid start design preheats lamp cathodes before applying full arc voltage to enhance lamp life
  • Lamps turn on to any dimmed level without flashing to full brightness
  • Low harmonic distortion throughout the entire dimming range maintains power quality
  • Frequency of operation ensures that ballast does not interfere with infrared devices operating between 38 and 42 kHz
  • Inrush current limiting circuitry eliminates circuit breaker tripping, switch arcing, relay failure and component life degradation
  • Ballasts maintain consistent light output for different lamp lengths, ensuring fixture uniformity
  • Ultra quiet operation
  • Protected from miswires of any input power to control lead, or from lamp leads to each other and ground
  • <=90% non condensing relative humidity, 75 deg C max ballast case temperature, class A sound rating
