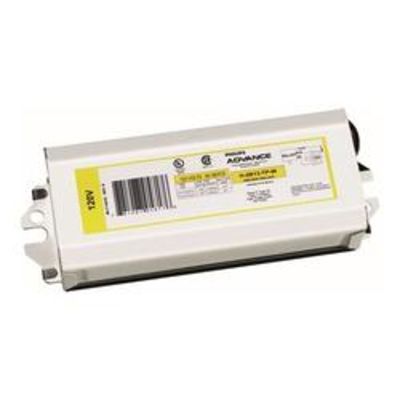

Signify H1Q26TPBLSM

Advance H1Q26TPBLSM Standard Magnetic Compact Fluorescent Ballast, CFL Lamp, 26 W Lamp, 120 VAC, Pre-Heat, 0.83 Ballast Factor
Ballasts, Starters and LED Drivers
7397284 H1Q26TPBLSM
Signify
$0.00 / ea

Signify H1Q26TPBLSM
  • Amperage Rating: 0.24
  • Ballast Factor: 0.83
  • Ballast Grade: ANSI C82.1
  • Dimensions: 6.5 in L x 2.38 in W x 1.5 in H
  • Frequency Rating: 60
  • Lamp Base Type: G24d
  • Lamp Type: CFL
  • Lamp Wattage: 26
  • Material: Metal
  • Minimum Starting Temperature: 50
  • Number of Lamps: 1
  • Power Factor: 0.98
  • Series: Standard
  • Start Type: Pre-Heat
  • Thermal Protection: Class P
  • Total Harmonic Distortion: 25%
  • Voltage Rating: 120
Advance Magnetic Compact Fluorescent Ballast, Series: Standard, CFL Lamp, 26 W Lamp, 120 VAC, 0.24 A, 60 Hz Frequency, Pre-Heat Start, 50 deg F Minimum Starting, Total Harmonic Distortion: 25%, Power Factor: 0.98, 1 Lamps, Thermal Protection: Class P, G24d Lamp Base, Ballast Factor: 0.83, ANSI C82.1 Ballast Grade, Metal, 6.5 in L x 2.38 in W x 1.5 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Quad CFL, series lamp connection
  • 112 to 127 VAC applied voltage limits
  • Yellow color label identification
  • 20 to 24 dB average ambient noise level
  • High power factor
  • Available for many fluorescent lamp types sold today, including preheat, rapid start, 2-pin CFL, slimline, high output, very high output and circline
  • Only choice for many low volume lamp types on the market
  • 60 Hz lamp operation eliminates possible EMI/RFI interference
