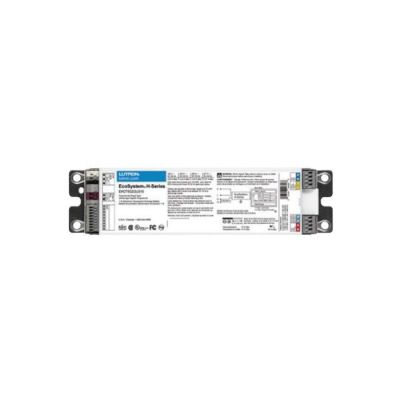

Lutron EHDT832GU310

EcoSystem EHDT832GU310 H Series Architectural Style Fluorescent Dimming Ballast, T8 U-Bend Lamp, 32 W Lamp, 120/240/277 VAC, Programmed/Rapid, 1 Ballast Factor
Connected Lighting and Controls
7731564 EHDT832GU310
Lutron
$0.00 / ea

Lutron EHDT832GU310
  • Amperage Rating: 0.83/0.4/0.37
  • Ballast Factor: 1
  • Dimensions: 9.5 in L x 2.38 in W x 1 in H
  • Dimmable: Yes
  • Frequency Rating: 42
  • Lamp Type: T8 U-Bend
  • Lamp Wattage: 32
  • Minimum Starting Temperature: 50
  • Number of Lamps: 3
  • Power Factor: 0.95
  • Series: H Series
  • Start Type: Programmed/Rapid
  • Temperature Range: 80
  • Thermal Protection: Class P
  • Total Harmonic Distortion: <10%
  • Type: Architectural Style
  • Voltage Rating: 120/240/277
  • Wattage: 99.6
EcoSystem Fluorescent Dimming Ballast, Architectural Style, Series: H Series, T8 U-Bend Lamp, 32 W Lamp, 99.6 W Wattage, 120/240/277 VAC, 0.83/0.4/0.37 A, 42 kHz Frequency, Programmed/Rapid Start, 50 deg F Minimum Starting, Total Harmonic Distortion: <10%, Power Factor: 0.95, Yes Dimmable, 3 Lamps, Thermal Protection: Class P, Ballast Factor: 1, 80 deg C, 9.5 in L x 2.38 in W x 1 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Digitally addressable ballasts combine superior 1% dimming performance and reliability
  • New EcoSystem® H10 series reduced wattage ballasts offer continuous, flicker free dimming from 100 to 10% for selected T8, T5 and T5HO reduced wattage lamps
  • Works with Energy Saver Node™ solutions with EcoSystem® module, which acts as a connection point for EcoSystem® H-series ballasts, wired or wireless controls and sensors
  • Programmed rapid start design ensures full rated lamp life
  • Lamps turn on to any dimmed level without flashing to full brightness
  • Low total harmonic distortion throughout the entire dimming range
  • Operating frequency ensures ballast does not interfere with IR devices
  • End-of-lamp-life protection circuitry ensures safe operation
  • Ultra-quiet operation
  • Non-volatile memory restores all ballast settings after power failure
  • Ballasts work with both wired and wireless sensors and controls for significant energy savings
  • 100% performance tested at factory
