Wattstopper CB-100

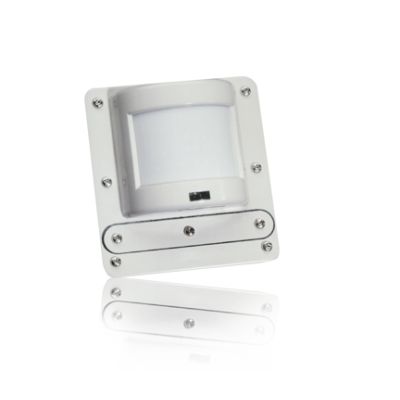

WattStopper CB-100 Dual Technology Occupancy Sensor, 24 VDC, Passive Infrared Sensor, 2000 sq-ft Coverage, Wall Mount
Occupancy and Motion Sensors
4351762 CB-100
Wattstopper
$0.00 / ea

  • Amperage Rating: 20
  • Material: Plastic
  • Mounting Type: Wall
  • Color: White
  • Connection Type: Flying Lead
  • Control Output: Automatic On/Automatic Off
  • Coverage: 2000
  • Dimensions: 3.94 in H x 3.74 in W x 2.36 in D
  • Sensor Type: Passive Infrared
  • Temperature Rating: -40 to 35
  • Time Delay: 15 s to 10 min
  • Type: Dual Technology
  • Voltage Rating: 24
This passive infrared (PIR) occupancy sensor was engineered for installation in cold and damp conditions including the outdoors. It uses electronic components to allow for reliable operation in extreme temperature and environmental conditions. Coverage up to 2000 sq ft.
  • Features
  • Operates in areas with temperature as low as -40 deg F
  • Gasketted, watertight enclosure prevents moisture and dust from entering the sensor and affecting occupancy detection
  • Choice of three different coverage patterns depending on needs of the application
  • Swivel mount bracket for convenient installation
  • Convenient DIP switch adjustable digital time delay of 15 sec, 5 min or 10 min
  • DIP switch adjustable sensitivity has 4 settings ranging from minimum to maximum
  • Isolated relay can interface with HVAC, EMS systems, monitoring systems or with an additional lighting load
  • Red LED indicates occupancy detection
  • Dual element, temperature compensated pyroelectric sensor
  • Dense wide angle lens
  • Low temperature
  • Lighting load
