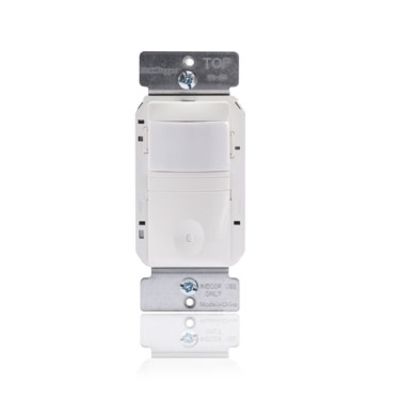

Wattstopper CS-50-LA

WattStopper CS-50-LA 2-Wire Wall Switch Vacancy Sensor, 120 VAC, PIR Sensor, 600 sq-ft Coverage, 180 deg Viewing, Wall Mount
Occupancy and Motion Sensors
7134999 CS-50-LA
Wattstopper
$0.00 / ea

Wattstopper CS-50-LA
  • Color: Light Almond
  • Connection Type: Flying Lead
  • Control Output: Manual On/Automatic Off
  • Coverage: 600
  • Dimensions: 2.67 in L x 1.73 in W x 1.77 in D
  • Lamp Type: CFL/Fluorescent/Incandescent/LED
  • Material: Plastic
  • Mounting Type: Wall
  • Power Rating: 1000
  • Sensor Type: PIR
  • Series: CS-50
  • Temperature Rating: 32 to 131
  • Time Delay: 30 s, 5/10/15/20/25/30 min
  • Type: 2-Wire
  • Viewing Angle: 180
  • Voltage Rating: 120
The CS-50 Passive Infrared (PIR) Vacancy Sensor provides automatic shutoff for single-pole lighting control applications in the home. It is engineered to comply with CaliforniaвЂs Title 24-2008 residential energy code. (light almond)
QTY
Add to Wishlist
  • Features
  • Automatic OFF control
  • 2-wire sensor, no neutral connection
  • LED status indicator
  • Adjustable time delay
  • Without neutral
