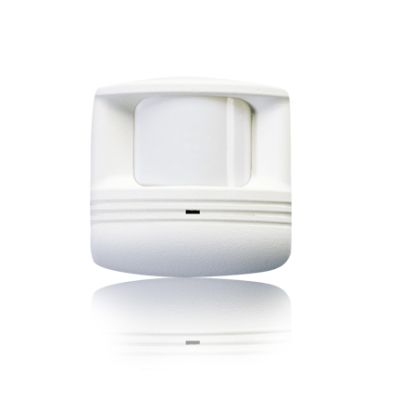

Wattstopper CX-105-1
WattStopper CX-105-1 Ceiling Mount Occupancy Sensor With Isolated Relay, Light Level, 24 VAC/VDC, Passive Infrared Sensor, 90 ft Coverage, 360 deg Viewing, Wall Mount
Occupancy and Motion Sensors
4627449
CX-105-1
Wattstopper
$0.00
/ ea
- Amperage Rating: 8
- Color: White
- Connection Type: Flying Lead
- Control Output: Automatic On/Automatic Off
- Coverage: 90
- Dimensions: 3.3 in H x 3.3 in W x 2.1 in D
- Lamp Type: LED/Incandescent
- Material: Plastic
- Mounting Type: Wall
- Power Rating: 600
- Sensor Type: Passive Infrared
- Temperature Rating: 35
- Time Delay: 15 s to 30 min
- Viewing Angle: 360
- Voltage Rating: 24
This Passive infrared Ceiling/Wall Sensor detects occupancy to control lighting in a wide variety of applications. These sensors provide superior coverage and performance with great energy savings. up to 90 linear feet.
- Features
- 95% relative humidity, non-condensing, for indoor use only environmental conditions
- This passive infrared ceiling/wall sensor detects occupancy to control lighting in a wide variety of applications
- These sensors provide superior coverage and performance with great energy savings
- Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI
- Pulse count processing eliminates false OFF without reducing sensitivity
- ASIC technology reduces components and enhances reliability
- Adjustable sensitivity enables occupancy detection to match the level of activity for each space
- 1 x 106 operating cycle
- The CX-100's integrated light level sensor can create bi-level control for added energy savings
- Multi-level fresnel lens for superior desktop occupancy detection with four lens patterns
- Isolated relay can interface with HVAC, EMS and monitoring systems or with an additional lighting load
- Dual element, temperature compensated pyro-electric sensor
- Swivel mounting bracket for convenient corner mounting to wall or ceiling
- 1 A at 24 VAC/VDC load rating
