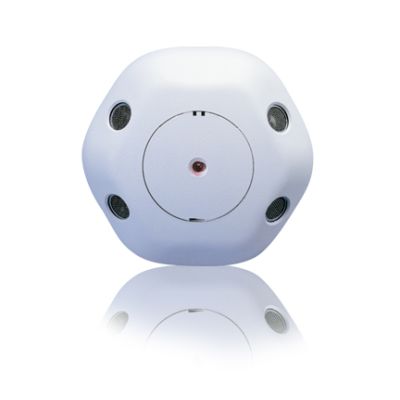

Wattstopper WT-605

WattStopper WT-605 WT Series Ceiling Mount Occupancy Sensor, 24 VDC, Ultrasonic Sensor, 600 sq-ft Coverage, 180 deg Viewing, Ceiling Mount
Occupancy and Motion Sensors
619948 WT-605
Wattstopper
$0.00 / ea

Wattstopper WT-605
  • Amperage Rating: 27
  • Color: White
  • Connection Type: Flying Lead
  • Control Output: Automatic On/Automatic Off
  • Coverage: 600
  • Dimensions: 4.8 in Dia x 1.5 in D
  • Lamp Type: LED
  • Material: Plastic
  • Mounting Type: Ceiling
  • Response Frequency: 25
  • Sensor Type: Ultrasonic
  • Series: WT Series
  • Temperature Rating: 35
  • Time Delay: 15 s to 30 min
  • Viewing Angle: 180
  • Voltage Rating: 24
This Ultrasonic Ceiling Sensor utilizes 32 KHz frequency ultrasonic technology to detect occupancy. The sensors are available in several models to control lighting in a wide variety of applications. 180В° one-sided, 600 sq feet.
QTY
Add to Wishlist
  • Features
  • 95% RH, non-condensing, for indoor use only environmental conditions
  • This ultrasonic ceiling sensor utilizes 32 kHz frequency ultrasonic technology to detect occupancy
  • ASP circuitry helps to eliminate false on
  • Advanced, omni directional, ultrasonic technology for reliable occupancy detection
  • Angled transmitter and receiver pairs help optimize sensitivity while eliminating unwanted detection from ceiling air movement
  • Isolated relay can interface with HVAC, EMS or an additional lighting load
  • 1 x 106 operating cycle
  • Dip switch adjustable time delay and sensitivity
  • 1 A at 24 VAC/VDC load rating
  • 95% RH, non-condensing, for indoor use only
