RAB Lighting RAIL185NW/D10/WS4

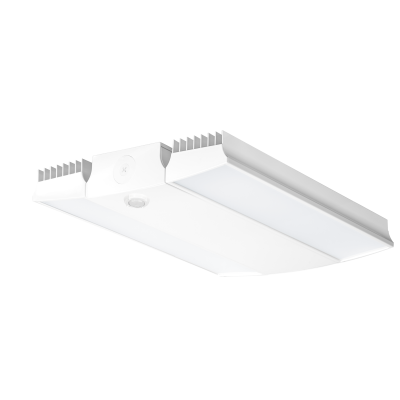

RAB RAIL185NW/D10/WS4 Dimmable High Bay Fixture With Multi Level Motion Sensor, LED Lamp, 180 W Fixture, 120 to 277 VAC, White Housing
Industrial Fixtures (Fluorescent and LED)
7471149
RAIL185NW/D10/WS4
RAB Lighting
$0.00
/ ea
- Amperage Rating: 1.6/0.92/0.8/0.69
- Average Life: 100000
- Ballast Type: Constant Current
- Color Rendering Index (CRI): 85
- Color Temperature: 4000
- Dimensions: 2-7/8 in H x 15-1/8 in W x 30-1/4 in D
- Enclosure Type: IP66
- Fixture Wattage: 180
- Housing Finish: White
- Housing Material: Aluminum
- Lamp Type: LED
- Lamp Wattage: 185
- Lens Type: Polystyrene Glass
- Light Color: Neutral White
- Lumens: 19865
- Mounting Type: V-Hook
- Series: RAIL
- Type: Dimmable
- Voltage Rating: 120 to 277
High Bay 22825 Lumens Rail 22 Inches 185W 4000K Led 120V-277V 0-10V Dimming 40 Feet Wattstopper Sensor White
- Features
- Ultra high efficacy
- Up to 60% less energy usage than equivalent metal halide fixtures
- Virtually maintenance free operation
- High transmittance polystyrene lens
- 111 LPW efficacy
- Integrated motion/photo sensor for multilevel lighting control
- 0 to 10 VDC driver for variable dimming down to 10%
- 1.6 A at 120 VAC, 0.92 A at 208 VAC, 0.8 A at 240 VAC, 0.69 A at 277 VAC
