RAB Lighting RAIL225W/D10/WS4

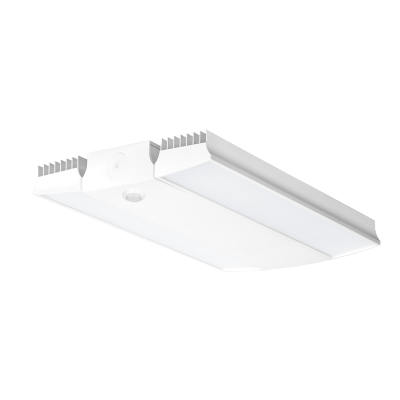

RAB RAIL225W/D10/WS4 Dimmable High Bay Fixture With Multi Level Motion Sensor, LED Lamp, 223 W Fixture, 120 to 277 VAC, White Housing
Industrial Fixtures (Fluorescent and LED)
7471160 RAIL225W/D10/WS4
RAB Lighting
$0.00 / ea

  • Amperage Rating: 1.92/1.12/0.97/0.84
  • Average Life: 100000
  • Ballast Type: Constant Current
  • Mounting Type: V-Hook
  • Color Rendering Index (CRI): 74
  • Color Temperature: 5000
  • Dimensions: 2-7/8 in H x 15-1/8 in W x 30-1/4 in D
  • Enclosure Type: IP66
  • Fixture Wattage: 223
  • Housing Finish: White
  • Housing Material: Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 225
  • Lens Type: Polystyrene Glass
  • Light Color: Cool White
  • Lumens: 27260
  • Series: RAIL
  • Type: Dimmable
  • Voltage Rating: 120 to 277
Hibay 26731 Lumens High Bay 26In 225W 5000K Cool Led 120V-277V 0-10V Dimming 40Ft Wattstopper Sensor White
  • Features
  • Ultra high efficacy
  • Up to 60% less energy usage than equivalent metal halide fixtures
  • Virtually maintenance free operation
  • High transmittance polystyrene lens
  • 122 LPW efficacy
  • Integrated motion/photo sensor for multilevel lighting control
  • 0 to 10 VDC driver for variable dimming down to 10%
  • 1.92 A at 120 VAC, 1.12 A at 208 VAC, 0.97 A at 240 VAC, 0.84 A at 277 VAC
