RAB Lighting RAIL400W/D10

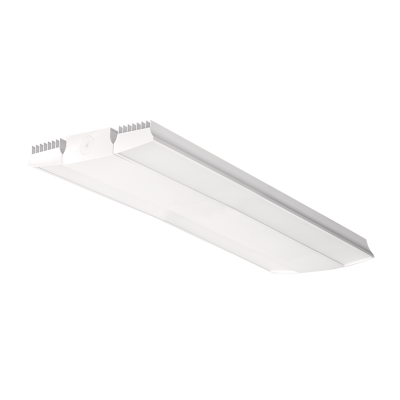

RAB RAIL400W/D10 High Bay Fixture,) LED Lamp, 399 W Fixture, 120/208/240/277 VAC, White/Polyester Powder Coated Housing
Industrial Fixtures (Fluorescent and LED)
7756801 RAIL400W/D10
RAB Lighting
$0.00 / ea

  • Amperage Rating: 1.47/1.74/2.01/3.34
  • Average Life: 100000
  • Ballast Type: 0 to 10 VDC Dimming/Class 2 Constant Current
  • Color Rendering Index (CRI): 76
  • Color Temperature: 5000
  • Dimensions: 52 in L x 15-3/8 in W x 3-1/8 in H
  • Fixture Wattage: 399
  • Housing Finish: White/Polyester Powder Coated
  • Housing Material: Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 400
  • Lens Type: Semi Diffuse Polystyrene
  • Light Color: Cool White
  • Light Output: 138
  • Lumens: 54996
  • Mounting Type: V-Hook
  • Series: RAIL
  • Voltage Rating: 120/208/240/277
RAB High Bay Fixture, Series: RAIL, 120/208/240/277 VAC, 399 W Fixture, 1.47/1.74/2.01/3.34 A, LED Lamp, 400 W Lamp, 138 Lumens/W Light Output, 100000 hr Average Life, Cool White Light, 5000 K Color Temperature, 76 CRI, 0 to 10 VDC Dimming/Class 2 Constant Current Ballast, Semi Diffuse Polystyrene Lens, 54996 Lumens, V-Hook Mounting, Aluminum Housing Material, White/Polyester Powder Coated Housing Finish, 52 in L x 15-3/8 in W x 3-1/8 in H Dimensions
  • Features
  • Virtually maintenance free operation
  • 0 to 10 VDC driver for variable dimming down to 10%
  • Low glare design with semi diffuse lens
  • 3.34 A at 120 VAC, 2.01 A at 208 VAC, 1.74 A at 240 VAC, 1.47 A at 277 VAC
