RAB Lighting RAIL95NW/D10/WS2

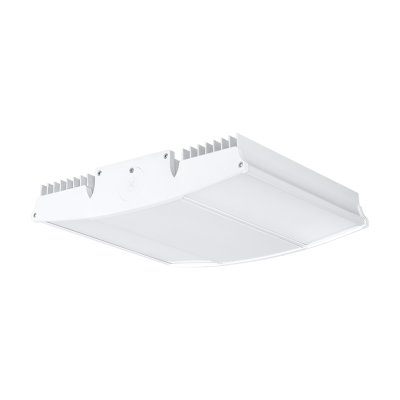

RAB RAIL95NW/D10/WS2 Dimmable High Bay Fixture With Multi Level Motion Sensor, LED Lamp, 91 W Fixture, 120 to 277 VAC, White Housing
Industrial Fixtures (Fluorescent and LED)
7471125 RAIL95NW/D10/WS2
RAB Lighting
$0.00 / ea

  • Amperage Rating: 0.78/0.47/0.41/0.35
  • Average Life: 100000
  • Ballast Type: Constant Current
  • Color Rendering Index (CRI): 84
  • Color Temperature: 4000
  • Dimensions: 2-7/8 in H x 15-1/8 in W x 20-3/4 in D
  • Enclosure Type: IP66
  • Fixture Wattage: 91
  • Housing Finish: White
  • Housing Material: Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 95
  • Lens Type: Polystyrene Glass
  • Light Color: Neutral White
  • Lumens: 9835
  • Mounting Type: V-Hook
  • Series: RAIL
  • Type: Dimmable
  • Voltage Rating: 120 to 277
High Bay 12255 Lumens Rail 13 Inches 95W 4000K Led 120V 277V 0-10V Dimming 20 Feet Lens Wattstopper Sensor
  • Features
  • Ultra high efficacy
  • Up to 60% less energy usage than equivalent metal halide fixtures
  • Virtually maintenance free operation
  • High transmittance polystyrene lens
  • Extruded aluminum housing material
  • Integrated motion/photo sensor for multilevel lighting control
  • 0 to 10 VDC driver for variable dimming down to 10%
  • 0.78 A at 120 VAC, 0.47 A at 208 VAC, 0.41 A at 240 VAC, 0.35 A at 277 VAC
