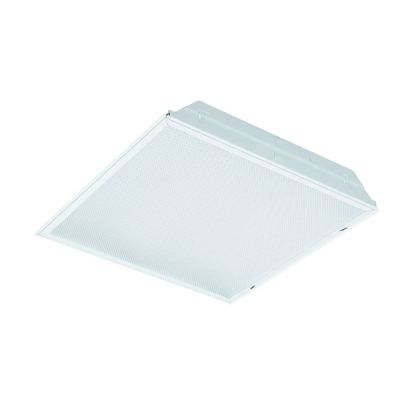

Signify 2TG30L840-2-FS-02F-UNV-DIM

Signify Luminaires Day-Brite 2TG30L840-2-FS-02F-UNV-DIM Low Profile T-Grid Troffer, LED Lamp, 32.7 W Fixture, 120 to 277 VAC, Steel Housing
Troffer Light Fixtures (Fluorescent and LED)
7557130 2TG30L840-2-FS-02F-UNV-DIM
Signify
$0.00 / ea

Signify 2TG30L840-2-FS-02F-UNV-DIM
  • Average Life: 50000
  • Ballast Type: Electronic
  • Color Rendering Index (CRI): 80
  • Color Temperature: 4000
  • Dimensions: 2 ft L x 2 ft W x 3 in H
  • Enclosure Type: NEMA G
  • Fixture Wattage: 32.7
  • Housing Material: Steel
  • Lamp Type: LED
  • Lens Type: 0.1 in Pattern 12 Diffused
  • Light Output: 112
  • Lumens: 3000
  • Mounting Type: Ceiling
  • Type: Low Profile
  • Voltage Rating: 120 to 277
Signify Luminaires Day-Brite T-Grid Troffer, Low Profile, 120 to 277 VAC, 32.7 W Fixture, LED Lamp, 112 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 80 CRI, Electronic Ballast, 0.1 in Pattern 12 Diffused Lens, 3000 Lumens, NEMA G Enclosure, Ceiling Mounting, Steel Housing Material, 2 ft L x 2 ft W x 3 in H
QTY
Add to Wishlist
  • Features
  • High efficacy long life solid state lighting platform
  • General lighting distribution is excellent for ambient lighting
  • High CRI source provides excellent color rendering
  • LEDs are an excellent source for use with controls since frequent switching does not affect the life of the light source
  • Smooth rolled edges on all four sides for easy handling
  • Die formed 1-piece housing includes stiffening embossed and provides increased rigidity
  • Housing is multi-stage phosphate treated for maximum corrosion resistance and finish coat is high reflectance baked white enamel
  • Integral baffling system to prevent light leaks
  • Two sets of integral grid clips (wraparound and fold out) for maximum mounting flexibility
  • Integral wire hanger holes for independent wire suspension
  • Embossed with holes provided in housing end for screwing to T-bar if desired
  • 7/8 in knockouts provided in each end cap for through wiring
  • Factory installed access plate in housing top includes 7/8 in hole with rolled edge and 7/8 in knockout
  • Carton includes integral carrying handle for easy handling
  • Standard 0 to 10 VDC dimming
  • Driver and LED boards are accessible from below, LED boards are individually replaceable if required
  • T-grid LED luminaries are design lights Consortium® qualified
  • Full "C" channel door frames for improved lens support and reduced shipping damage
