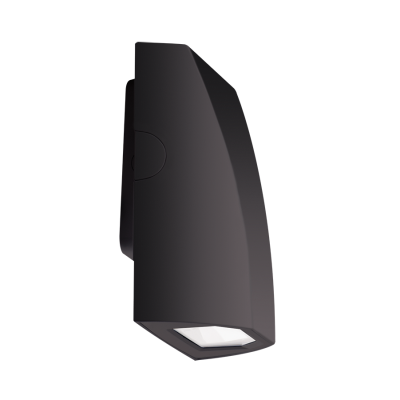

RAB Lighting SLIM26

RAB SLIM26 Wallpack,) LED Lamp, 31 W Fixture, 120/208/240/277 VAC, Bronze Housing
Wallpacks (HID and LED)
7217768 SLIM26
RAB Lighting
$0.00 / ea

  • Amperage Rating: 0.27/0.17/0.15/0.13
  • Average Life: 100000
  • Ballast Type: Class 2/Constant Current
  • Color Rendering Index (CRI): 68
  • Color Temperature: 5100
  • Dimensions: 8.75 in H x 6.5 in W x 3.9 in D
  • Enclosure Type: IP66
  • Fixture Wattage: 31
  • Housing Finish: Bronze
  • Housing Material: Die Cast Aluminum
  • Lamp Type: LED
  • Lamp Wattage: 26
  • Lens Type: Tempered Glass
  • Light Color: Cool White
  • Lumens: 2648
  • Mounting Type: Wall
  • Series: Slim
  • Voltage Rating: 120/208/240/277
Wall Packs 3523 Lumens Slim 26W Bronze
  • Features
  • Ultra efficient and deliver impressive light distribution with a compact low profile design that's super easy to install as a downlight or uplight
  • Precision die cast aluminum housing
  • High temperature silicone gaskets
  • Specular thermoplastic reflector
  • Recommended mounting height up to 22 ft
  • Superior heat sinking with internal air flow fins
  • Heavy duty mounting bracket with hinged housing for easy installation
  • Mercury and UV free
  • -40 to 40 deg C temperature
  • Full cutoff, fully shielded LED wallpack
  • Can be used as a downlight or uplight
  • Contractor friendly features for easy installation
  • 97 LPW efficacy
  • High temperature silicone gasket
  • Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals
  • Ingress protection rating of IP66 for dust and water
  • 0.27 A at 120 VAC, 0.17 A at 208 VAC, 0.15 A at 240 VAC, 0.13 A at 277 VAC
  • Without photocell
