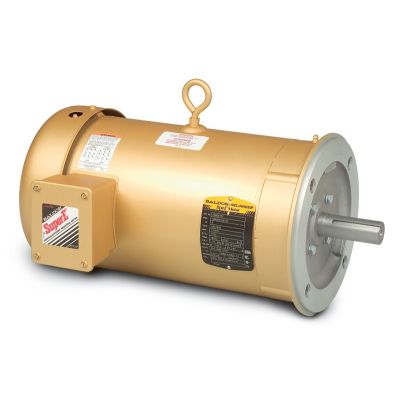

Baldor VEM3555
Baldor-Reliance VEM3555 Type 3526M Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 2 hp, 208/230/460 VAC, 60 Hz, 3 Phase, 56C Frame, 3490 rpm Speed, C-Face Footless Mount
AC Motors
5408543
VEM3555
Baldor
$0.00
/ ea
- Amperage Rating: 5.3/5/2.5
- Application Type: General Purpose AC Motors, Fan & Blower Motors, Compressor Motors
- Bearing Type: Ball
- Dimensions: 13.23 in L x 9.75 in W
- Enclosure Type: Totally Enclosed Fan Cooled
- Frame: 56C
- Frequency Rating: 60
- Horsepower: 2
- Insulation Class: Class F
- Material: Steel
- Mounting Type: C-Face Footless
- Number Of Speeds: 1
- Phase: 3
- Rotation: Reversible
- Service Factor: 1.15
- Shaft Size: 5/8
- Speed: 3490
- Temperature Rating: 40 to 76
- Type: Type 3526M Continuous Duty
- Voltage Rating: 208/230/460
Baldor-Reliance AC Motor, Type 3526M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 2 hp, 208/230/460 VAC, 5.3/5/2.5 A, 60 Hz Frequency, 3 ph, 3490 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, C-Face Footless Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 13.23 in L x 9.75 in W Dimensions
- Features
- Footless design reduces weight and improves safety
- Locked DE bearing to allow mounting in any configuration
- 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
- Suitable for inverter use per NEMA MG1 part 31.4.4.2
- Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
