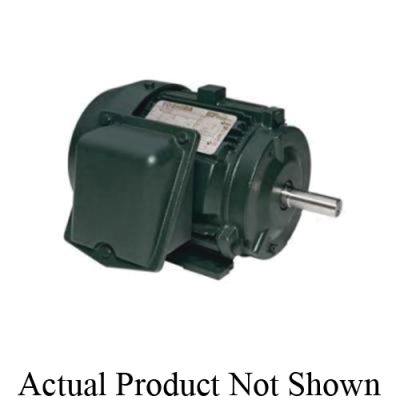

Toshiba 0304XDSB42A-P

Toshiba EQP Global reg; 0304XDSB42A-P 841 Continuous-Duty Type TKKH AC Motor, Totally Enclosed Fan Cooled Enclosure, 30 hp, 460 VAC, 60 Hz, 3 ph Phase, 286TC Frame, 1800 rpm Speed, C-Face Footed Mount
AC Motors
7134879 0304XDSB42A-P
Toshiba
$0.00 / ea

Toshiba 0304XDSB42A-P
  • Amperage Rating: 36
  • Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
  • Bearing Type: Ball
  • Constant Torque Speed Range: 20:1
  • Dimensions: 28.4 in L x 17.2 in H
  • Enclosure Type: Totally Enclosed Fan Cooled
  • Frame: 286TC
  • Frequency Rating: 60
  • Horsepower: 30
  • Insulation Class: Class F
  • Material: Cast Iron
  • Mounting Type: C-Face Footed
  • Phase: 3
  • Rotation: CW/CCW
  • Series: 841
  • Service Factor: 1.15
  • Shaft Size: 1-7/8
  • Speed: 1800
  • Temperature Rating: 40
  • Torque Rating: 89
  • Type: Continuous-Duty Type TKKH
  • Variable Torque Speed Range: 60:1
  • Voltage Rating: 460
Toshiba EQP Global® AC Motor, Continuous-Duty Type TKKH, Series: 841, General Purpose AC Motors, Compressor Motors, Fan & Blower Motors Application, 30 hp, 460 VAC, 36 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 286TC Frame, 1-7/8 in Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 89 ft-lb Torque, C-Face Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 60:1 Variable Torque Speed, 28.4 in L x 17.2 in H Dimensions
QTY
Add to Wishlist
  • Features
  • Design B torques
  • IP56 protection
  • Cast iron frame, brackets, conduit box and fan cover
  • Breather drains, plugs or t-drains
  • No-load commercial testing on all motors
