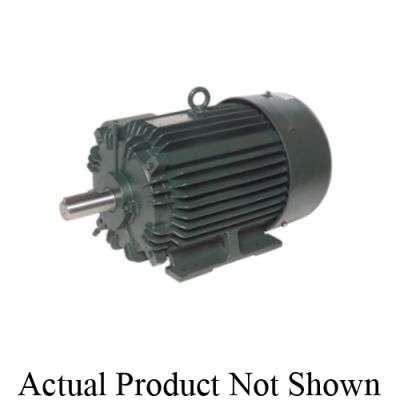

Toshiba B3004FLF4BMHDL
Toshiba EQP Global B3004FLF4BMHDL 840 Continuous-Duty Type TKKH AC Motor, Totally Enclosed Fan Cooled Enclosure, 300 hp, 460 VAC, 60 Hz, 3 ph Phase, N449T Frame, 1800 rpm Speed, Footed Mount
AC Motors
7576900
B3004FLF4BMHDL
Toshiba
$0.00
/ ea
- Amperage Rating: 330
- Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
- Bearing Type: Ball/Roller
- Constant Torque Speed Range: 20:1
- Dimensions: 59.3 in L x 28 in H
- Enclosure Type: Totally Enclosed Fan Cooled
- Frame: N449T
- Frequency Rating: 60
- Horsepower: 300
- Insulation Class: Class F
- Material: Cast Iron
- Mounting Type: Footed
- Phase: 3
- Rotation: CW/CCW
- Series: 840
- Service Factor: 1.15
- Shaft Size: 3-3/8
- Speed: 1800
- Temperature Rating: 40
- Torque Rating: 885
- Type: Continuous-Duty Type TKKH
- Variable Torque Speed Range: 60:1
- Voltage Rating: 460
Toshiba EQP Global AC Motor, Continuous-Duty Type TKKH, Series: 840, General Purpose AC Motors, Compressor Motors, Fan & Blower Motors Application, 300 hp, 460 VAC, 330 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, N449T Frame, 3-3/8 in Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball/Roller Bearing, 885 ft-lb Torque, Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 60:1 Variable Torque Speed, 59.3 in L x 28 in H Dimensions
- Features
- Design B torques
- IP55/IP56 protection
- Cast iron frame, brackets, conduit box and fan cover
- Breather drains, plugs or t-drains
- Oversized 300 series bearing on all frames
- No-load commercial testing on all motors
