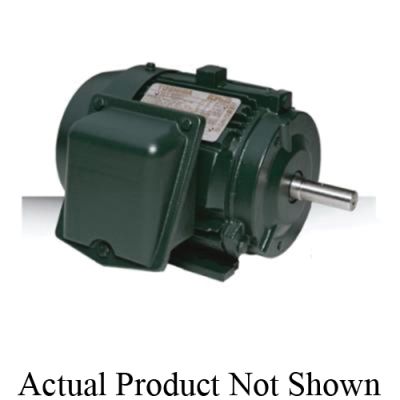

Toshiba Y154SDSR41A-P

Toshiba EQP Global reg; Y154SDSR41A-P SD Series Continuous-Duty Type IKH AC Motor, Totally Enclosed Fan Cooled Enclosure, 1.5 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 145T Frame, 1800 rpm Speed, Footed Mount
AC Motors
7134323 Y154SDSR41A-P
Toshiba
$0.00 / ea

Toshiba Y154SDSR41A-P
  • Amperage Rating: 4.8/2.4
  • Application Type: General Purpose AC Motors, Compressor Motors, Fan & Blower Motors
  • Bearing Type: Ball
  • Constant Torque Speed Range: 20:1
  • Dimensions: 13.2 in L x 7.7 in H
  • Enclosure Type: Totally Enclosed Fan Cooled
  • Frame: 145T
  • Frequency Rating: 60
  • Horsepower: 1.5
  • Insulation Class: Class F
  • Material: Cast Iron
  • Mounting Type: Footed
  • Phase: 3
  • Rotation: CW/CCW
  • Series: SD Series
  • Service Factor: 1.15
  • Shaft Size: 7/8
  • Speed: 1800
  • Temperature Rating: 40
  • Torque Rating: 4.5
  • Type: Continuous-Duty Type IKH
  • Variable Torque Speed Range: 60:1
  • Voltage Rating: 230/460
Toshiba EQP Global® AC Motor, Continuous-Duty Type IKH, Series: SD Series, General Purpose AC Motors, Compressor Motors, Fan & Blower Motors Application, 1.5 hp, 230/460 VAC, 4.8/2.4 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 145T Frame, 7/8 in Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 4.5 ft-lb Torque, Footed Mounting, 40 deg C, Insulation Class: Class F, Cast Iron, 20:1 Constant Torque Speed, 60:1 Variable Torque Speed, 13.2 in L x 7.7 in H Dimensions
QTY
Add to Wishlist
  • Features
  • IP55 protection
  • Cast iron frame, brackets and conduit box
  • Oversized 300 series bearing on all frames
  • No-load commercial testing on all motors
