Baldor M3211T-8

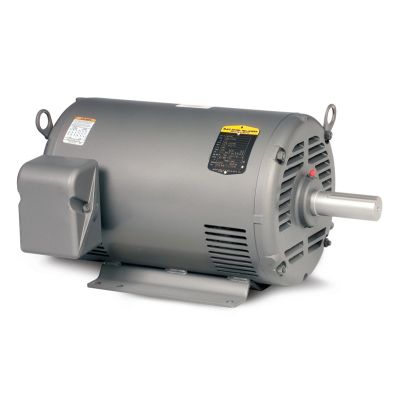

Baldor-Reliance Super-E M3211T-8 Continuous-Duty AC Motor, OPSB Enclosure, 3 hp, 200 VAC, 60 Hz, 3 Phase, 182 Frame, 1745 rpm Speed, F-1 Mount
AC Motors
5407464 M3211T-8
Baldor
$0.00 / ea

Baldor M3211T-8
Baldor-Reliance Super-E AC Motor, Continuous-Duty, Compressor Motors, General Purpose AC Motors, Fan & Blower Motors Application, 3536M Motors, Direct On Line Starting Method Special Features, 3 hp, 200 VAC, 9.4 A, 60 Hz Frequency, 3 ph, 1745 rpm Speed, 1 Speed, OPSB Enclosure, 182 Frame, 1-1/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, 33.7 ft-lb Torque, F-1 Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 14.63 in L Dimensions
QTY
Add to Wishlist
  • Features
  • 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
  • Suitable for inverter use per NEMA MG1 part 31.4.4.2
  • Simple F1 to F2 conversion on cast iron frames
  • Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors
