Hubbell Wiring HBL5266CA

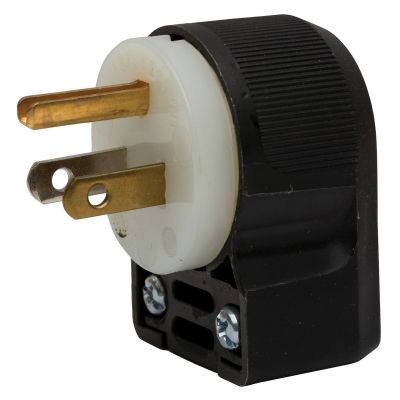

Wiring Device-Kellems Insulgrip HBL5266CA 1-Phase 4-Position Angled Grounding Portable Standard Cord Mount Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Plugs Connectors
396411
HBL5266CA
Hubbell Wiring
$0.00
/ ea
Wiring Device-Kellems Insulgrip Straight Blade Plug, 1-Phase 4-Position Angled Grounding Portable Standard Cord Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15P NEMA Rating, Commercial/Industrial Grade, IP20 Enclosure, 0.325 to 0.655 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 1.53 x 1.22 x 2.11 in
- Features
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
- Terminals identified in accordance with UL 498 (brass, white, green)
- 18 to 10 AWG solid or stranded copper conductor terminal accommodation
- UL 94-HB or better flammability rating
- 0.06 in brass contact blades, 0.04 in copper alloy blades
- #8-32 brass/nickel plated for neutral terminal screw, #8-32 brass multiple drive (green) ground screw
- 8-position angled plug
- Low profile design
- Roomy wiring chamber provides ample space for wiring
- Black nylon housing, clear polycarbonate retainer, natural nylon blade holder and cord clamp
