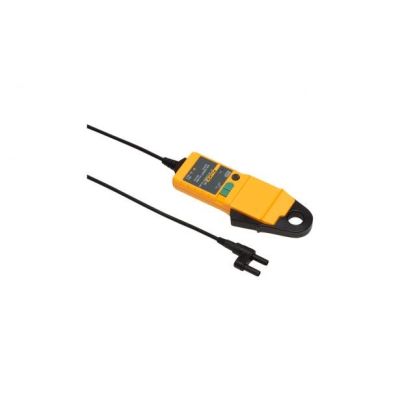

Fluke Corporation I30

Fluke I30 AC/DC Current Clamp, 30 A, 300 VAC/VDC, 20 kHz
Electronic Power Control
6890186 I30
Fluke Corporation
$0.00 / ea

Fluke Corporation I30
Current clamp is based on Hall Effect technology for use in measurement of both DC and AC current. May be used in conjunction with multimeters, recorders and other suitable recording instruments for accurate non-intrusive current measurement.
QTY
Add to Wishlist
  • Features
  • 30 mA to 30 a DC, 30 mA to 20 A AC RMS specified current range
  • 5 mA to 30 a DC, 30 mA to 20 A AC RMS usable current range
  • 1.4 in crest factor
  • 100 mV/A output sensitivity
  • +/-1 mA resolution
  • >10 kOhm and <=100 pF load impedance
  • +/-1% relative to center reading conductor position sensitivity
  • DC to 20 kHz (-0.5 dB) frequency
  • +/-0.01% of reading/deg C temperature coefficient
  • 9 VDC alkaline, MN1604/PP3, 30 hours low battery indicator power supply
  • 300 VAC RMS or DC working voltage
  • 19 mm Dia maximum conductor
  • 4 mm safety connector output connection
  • Manual adjust via thumbwheel output zero
  • 1.5 m L cable
  • -20 to 85 deg C storage temperature range (with battery removed)
  • 15 to 85% non-condensing operating humidity
  • 300 VRMS, category III, pollution degree 2
