Littelfuse LFH60060-2CID

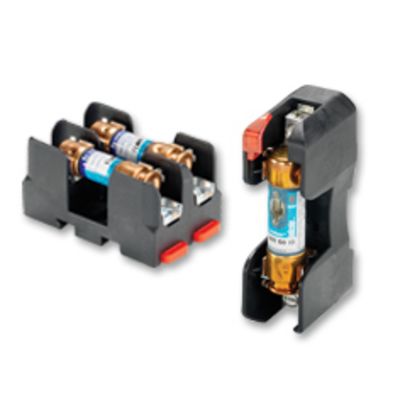

Littelfuse POWR-GARD LFH60060-2CID Indicating Fuse Block, 600 VAC, 60 A, Class: H, 4 to 2 AWG, 14 to 6 AWG Wire, 2 Poles
Distribution Blocks
7328520 LFH60060-2CID
Littelfuse
$0.00 / ea

The new Littelfuse Class H blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
  • Features
  • Universal mounting holes for easy replacement
  • One hand release from DIN rail for ferrule style fuses
  • Reinforced fuse clips are standard on all class H and class R fuse blocks
  • <0.6 mA at 600 VAC leakage current
  • 10 kA rms symmetrical withstand rating
  • Clip designs maximize electrical contact and minimize heat rise
  • DIN rail releasable for all non-knife blade style fuses
  • Lead-free
  • Indication offered on most 250 and 600 VAC versions
