Littelfuse LFR60030-1CID

Littelfuse POWR-GARD LFR60030-1CID Indicating Fuse Block, 600 VAC, 30 A, Class: R, 14 to 6 AWG Wire, 1 Pole
Fuse Holders and Blocks
7135262 LFR60030-1CID
Littelfuse
$0.00 / ea

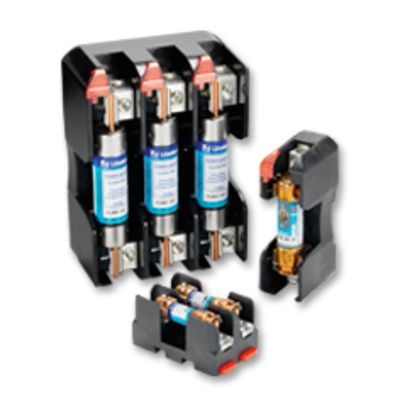

The new Littelfuse Class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and Class R fuse blocks are dimensionally the same, but Class R blocks incorporate a rejection feature, which only allows Class R fuses to be inserted.
  • Features
  • Universal mounting holes for easy replacement
  • One hand release from DIN rail for ferrule style fuses
  • Reinforced fuse clips are standard on all class H and class R fuse blocks
  • <0.6 ma at 600 V leakage current
  • 200 kA rms symmetrical withstand rating
  • Clip designs maximize electrical contact and minimize heat rise
  • DIN-Rail releasable for all non-knife blade style fuses
  • UL94 V-0 flammability rating
  • Lead (Pb) free
