Signify LPW16-58BZ

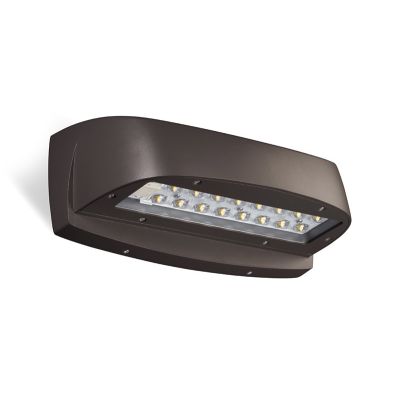

Signify Luminaires Stonco LytePro LPW16-58BZ Type 3 Wall Sconce, (16) LED Lamp, 30 W Fixture, 120/277 VAC, Bronze Textured Housing
Industrial Fixtures (Fluorescent and LED)
7468235 LPW16-58BZ
Signify
$0.00 / ea

Signify LPW16-58BZ
Signify Luminaires Stonco LytePro Wall Sconce, Type 3, 120/277 VAC, 30 W Fixture, 530 mA, LED Lamp, 30 W Lamp, 16 Lamps, 10000 hr Average Life, Neutral White Light, 4000 K Color, 70 CRI, 2698 Lumens, IP65, Surface Mount, Die Cast Metal Housing, Bronze Textured Housing, 4.61 in H x 12.02 in W x 5.71 in D
QTY
Add to Wishlist
  • Features
  • 96 LPW efficacy
  • B1/U0/G1 bug rating
  • -40 deg F to 104 deg F rated ambient temperature
  • LP16W-5, 30 W LED may effectively replace 70 to 100 W HID luminaries
  • The Philips Stonco® LytePro LED small wall sconce LPW16 combines excellent performance, design and value to meet the needs of the energy and budget conscious
  • The LPW16 is available for use in downward facing, surface wall mount applications, over recessed junction box or where power can be directly fed through back surface, whereby connections splices can be made inside the luminaire housing
  • 40 W model two standard units are available in two different finishes
  • 120 VAC button photocell is available in bronze only
  • 30 W model standard units available in bronze only, with and without photocell 30W model is California title 24 compliant
  • Die cast housing houses both the LED and driver assemblies, design incorporates an integrated heat sink to maximum thermal performance and reliability
  • Backplate is corrosion free, composite polycarbonate, with built-in level bubble, offers integral interlocking hook and mount design for easy installation
  • Easy interlocking hook and mount housing/backplate design for easy installation
  • Mounts over 3.5 in, 4 in octagonal junction box and single gang switch boxes or can be directly lagged to surface
  • Ensure proper steps for gasket/sealing luminaire to surface
  • Provides up to 93 LPW in LPW16-7 and 96 LPW in LPW16-5 at the system level, standard color temp is 4000K +/-250K, minimum 70 CRI LED board and array
  • Driver efficiency (>90% standard), 120 to 277 VAC, temp range -40 deg C to 40 deg C, open/short circuit protection, inherent surge protection up to (4 kVA)
  • Each luminaire receives a fade and abrasion resistant, electrostatically applied, thermally cured, triglycidal isocyanurate (TGIC) textured polyester powder coat finish
