Legrand V4086A

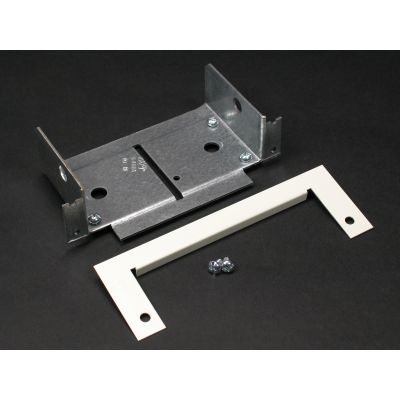

Wiremold V4086A Multi-Channel Panel Connector Fitting, For Use With 4000 Series Raceway, Steel, ScuffCoat
Raceway Fittings Med Voltage
7347352
V4086A
Legrand
$0.00
/ ea
- Color: Ivory/Gray
- Dimensions: 5-5/32 in L x 1-1/2 in W x 7/32 in H
- Finish: ScuffCoat™
- Material: Steel
- Suitable For Use With: 4000 Series Raceway
- Type: Multi-Channel
Connects 4000 Series Raceway to surface type panel boxes. Maintains maximum wire capacity of 4000 Series Raceway. Separate C-shaped flange fits around raceway, to hide irregularities made during cutting into box. Ivory
- Features
- Large cross section area provides ample space for large wiring requirements
- Complete line of fittings provides a complete wiring solution and allows for interconnection between raceway systems
- Gray baked enamel and ivory ScuffCoat™ finish makes a scratch resistant surface
- Connect S4000 series raceway to surface type panel boxes
- Maintains maximum wire capacity of 4000 series raceway
- Separate c-shaped flange fits around raceway, covering any irregularities from cutting into box
