ABB Installation Products 2564

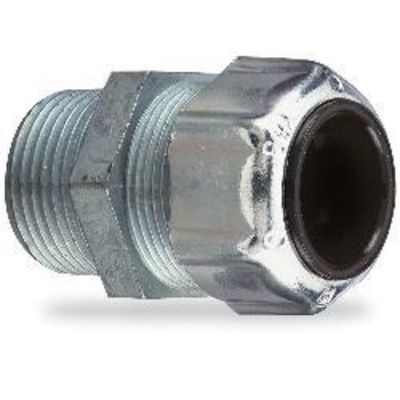

T&B 2564 Ranger Liquidtight Strain Relief Cord Connector, 1-1/2 in Trade, 1.187 to 1.375 in Cable Openings, Die Cast Zinc, Zinc Plated
Cord Connectors and Grips
37566
2564
ABB Installation Products
$0.00
/ ea
- Cable Openings: 1.187 to 1.375
- Cable Type: S/SO
- Color: Metallic
- Connection Type: Thread
- Dimensions: 2-1/4 in L x 2-17/16 in W
- Finish: Zinc Plated
- Material: Die Cast Zinc
- Series: Ranger®
- Temperature Rating: 105
- Trade Size: 1-1/2
- Type: Liquidtight
Liquidtight Strain Relief Cord Connector, 1-1/2 Inch, Straight, Cord Range 1.187 to 1.375 Inch, Die Cast Zinc
- Features
- Extended range with superior strain relief
- Gland nut designed to restrict cable bending
- Reduced overall size, fits into tighter spaces
- Form a mechanical grip and water and/or oil-resistant seal for cord and unarmored or jacketed armored round cables
- Form a non-slip connection or termination for flexible cord, cable (armored or unarmored)
- Provide grounding continuity of cable armor
- Steel gland and neoprene bushing
- 11/16 in L thread
- 1-17/16 in dia throat
- S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable
