Legrand EFB6S-FC

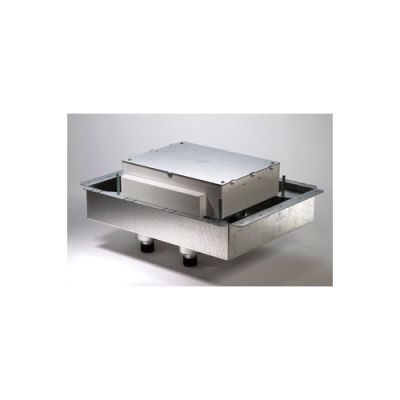

Wiremold EFB6S-FC Fire Classified Floor Box, For Use With Evolution 6-Gang Floor Box, (4) 1-1/4 in Knockout, 205 cu-in Capacity, Steel
Floor Boxes
7375980
EFB6S-FC
Legrand
$0.00
/ ea
- Dimensions: 21-3/4 in L x 17-1/4 in W x 4-1/4 in H
- Material: Steel
- Specifications: (4) 1-1/4 in Knockout, 205 cu-in Capacity
- Suitable For Use With: Evolution™ 6-Gang Floor Box
- Type: Fire Classified
Wiremold Floor Box, Fire Classified, For Use With: Evolution 6-Gang Floor Box, Specifications: (4) 1-1/4 in Knockout, 205 cu-in Capacity, Steel, 21-3/4 in L x 17-1/4 in W x 4-1/4 in H Dimensions
- Features
- Pre-assembled installation ready floor box has been designed to be installed in above grade concrete floors while maintaining the fire classification of the floor
- This box is classified to be used in 2 hr fire rated floors
- Designed to accept standard size wallplates
- Box comes complete with all components needed for initial installation
- Audio video design
- Suitable for use in air handling spaces
- Hinge design enables covers to open a full 180 deg and lie flat on the floor surface with the durability to support a large cover
- Provides easy access to all interior modules and activations while reducing tripping hazards
- Auto-close egress doors
- Fully finished interior removes the unfinished industrial look while increasing visibility, making it easier to see where to plug-in devices
- Evolution series floor box has been designed to be installed into bare (polished) concrete and terrazzo floor
- Accepts standard size wallplates
- Evolution series floor box covers have been designed to work on multiple floor surfaces and are manufactured from die-cast aluminum to provide strength and style
- Allows multiple cables to be organized and controlled for easier cable egress
- Evolution series floor box covers meet and exceed UL scrub water exclusion requirements for tile, carpet, wood, bare concrete and terrazzo floor coverings
- UL classified to maintain the integrity of up to 3 hr fire rated floor structures
- 2 to 5-1/4 in H pour
- 3-7/8 in D behind device plate
- Steel construction
- Fire classified for up to 2-hours
