Legrand TM874NICC6

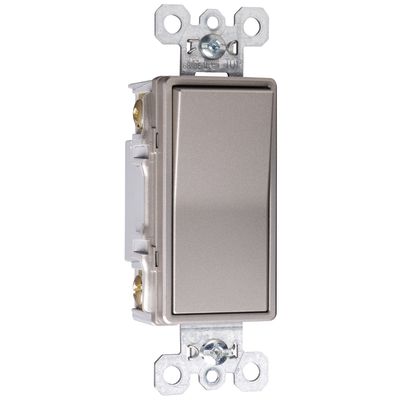

Pass & Seymour Radiant TradeMaster TM874NICC6 4-Way Decorator Switch, 120/277 VAC, 15 A
Decorator and Rocker Switch
7252088 TM874NICC6
Legrand
$0.00 / ea

Legrand TM874NICC6
  • Action: On/Off
  • Actuator: Rocker
  • Amperage Rating: 15
  • Dimensions: 1.43 in W x 1.27 in D x 4.19 in H
  • Enclosure: NEMA WD-1/WD-6
  • Environmental Conditions: -40 to 115 deg C Operating Temperature
  • Material: Thermoplastic
  • Mounting: Wall
  • Number of Poles: 4
  • Operating Cycles: 50000
  • terminal type: Threaded
  • Type: 4-Way
  • Voltage Rating: 120/277
NickelDecorator Switch, 4-Way 15amp, 120/277VAC with ground, side and, back wire. Our complete line of Decorator devices combine today's design aesthetics with ease of installation, reliability, and performance that never goes out of style.
QTY
Add to Wishlist
  • Features
  • Part of the all new Radiant® collection, rated as a 1-1/2 hp motor control switch
  • Smooth paddle action
  • High impact-resistant thermoplastic construction
  • External screw pressure plate back and side wired
  • Accepts 12 and 14 AWG wire size
  • 14 AWG push wire size
  • Narrow back body leaves more room for wires in the box
  • Extra long, through body strap eliminates floating installations and imperfect applications
  • Easy access green hex head ground screw
  • Tri-drive ground, terminal and mounting screws
  • Designer style satin finish rocker
  • On-Off switches conform to national electrical code 430-104 requirements for kitchen and disposal units
