Legrand PS20AC4IL

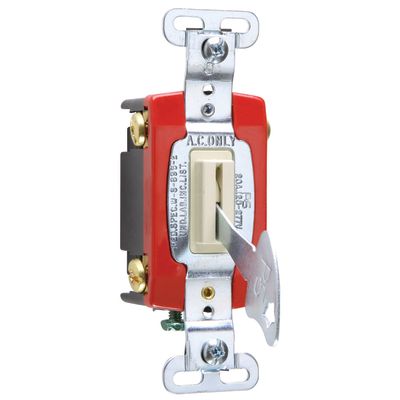

Pass & Seymour PS20AC4IL 4-Way Extra Heavy Duty Lock Switch, 120/277 VAC, 20 A, 4 W Power Rating
General Purpose Switches
6866300
PS20AC4IL
Legrand
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 20
- Color: Ivory
- Connection: Thread
- Contact Rating: 20 A at 120/277 VAC
- Dimensions: 3.281 in H x 1.32 in W x 1.073 in D
- Environmental Conditions: -40 to 115 deg C Temperature
- Material: Nylon
- Mounting: Wall
- Power Rating: 4
- Type: 4-Way Extra Heavy Duty
- Voltage Rating: 120/277
4way Lock Switch, Back and, Side Wire, 20amp 120/277volt, Ivory (Key can be removed in both positions)
- Features
- External screw pressure plate back and side wired
- Accepts 14 to 10 AWG copper or copper clad conductor size
- Heavy gauge 1-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast make and positive break to minimize arcing
- Heavy duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
- Strap nickel plated steel with integral ground
- Auto-ground clip assures positive ground
- Glass reinforced nylon body
- 1 hp at 120 VAC, 2 hp at 240 VAC power rating
