Legrand PS30AC3

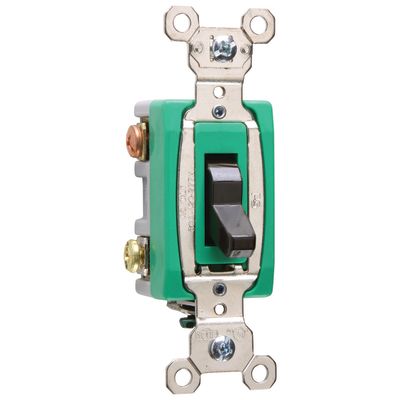

Pass & Seymour PS30AC3 3-Way Extra Heavy Duty Toggle Switch, 120/277 VAC, 30 A, 3 W Power Rating
General Purpose Switches
4868576
PS30AC3
Legrand
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 30
- Color: Brown
- Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
- Material: Nylon
- Mounting: Wall
- Power Rating: 3
- terminal type: Back/Side Wire
- Type: 3-Way Extra Heavy Duty
- Voltage Rating: 120/277
3way Toggle Switch, Back and, Side Wire, 30amp 120/277volt, Brown
- Features
- External screw pressure plate back and side wired, accepts 14 to 10 AWG copper or copper clad conductors
- Heavy gauge 1-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast make and positive break to minimize arcing
- Heavy duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
- Strap nickel plated steel with integral ground
- Auto-ground clip assures positive ground
- Industrial grade
- Thermoplastic polycarbonate toggle
- Glass reinforced nylon
