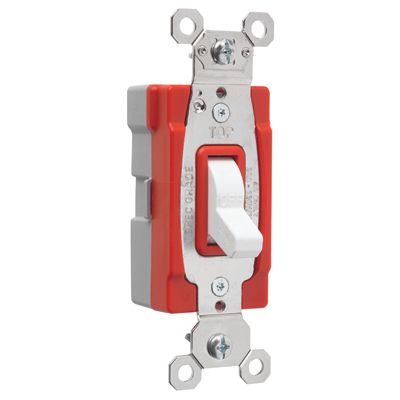

Legrand PT15AC3W
Pass & Seymour PlugTail PT15AC3-W 3-Way Extra Heavy Duty Plug Tail Toggle Switch, 120/277 VAC, 15 A, 3 W
General Purpose Switches
7005872
PT15AC3W
Legrand
$0.00
/ ea
- Actuator: Toggle
- Amperage Rating: 15
- Color: White
- Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
- Environmental Conditions: -40 to 60 deg C Temperature
- Material: Thermoplastic
- Mounting: Wall
- Operating Cycles: 50000
- Power Rating: 3
- Type: 3-Way Extra Heavy Duty Plug Tail
- Voltage Rating: 120/277
PlugTailThree-WayToggle Switch, 15amp 120/277vac, White
- Features
- 1-piece nickel plated mounting strap for superior corrosion-resistance
- Auto-ground clip assures positive ground
- 1-piece toggle molded from chemical, impact and heat resistant thermoplastic
- Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
- Glass reinforced nylon back body for durability, strength and resistance to harsh cleaners
- No exposed terminals create a finger safe application before, during and after installation
- #12 AWG, THHN, copper conductor, 6 in leads, stripped, solid or stranded
- Shallow design
