Legrand PT20AC3I

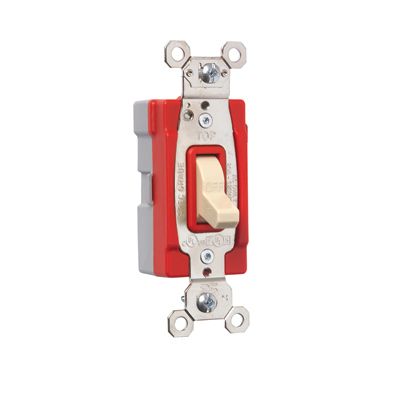

Pass & Seymour PlugTail PT20AC3-I 3-Way Extra Heavy Duty Plug Tail Toggle Switch, 120/277 VAC, 20 A, 3 W Power Rating, DPDT Contact
General Purpose Switches
7164084 PT20AC3I
Legrand
$0.00 / ea

Legrand PT20AC3I
  • Actuator: Toggle
  • Amperage Rating: 20
  • Color: Ivory
  • Contact Configuration: DPDT
  • Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
  • Environmental Conditions: -40 to 60 deg C Temperature
  • Material: Thermoplastic
  • Mounting: Wall
  • Operating Cycles: 50000
  • Power Rating: 3
  • terminal type: Blade
  • Type: 3-Way Extra Heavy Duty Plug Tail
  • Voltage Rating: 120/277
PlugTailThree-Way Toggle Switch, 20amp 120/277vac, Ivory
QTY
Add to Wishlist
  • Features
  • 1-piece nickel plated mounting strap for superior corrosion-resistance
  • Auto-ground clip assures positive ground
  • 1-piece toggle molded from chemical, impact and heat resistant thermoplastic
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections
  • Glass reinforced nylon back body for durability, strength and resistance to harsh cleaners
  • No exposed terminals create a finger safe application before, during and after installation
  • #12 AWG, THHN, copper conductor, 6 in leads, stripped, solid or stranded
  • Pigtail connection
  • Shallow design
