Legrand PS520R9W

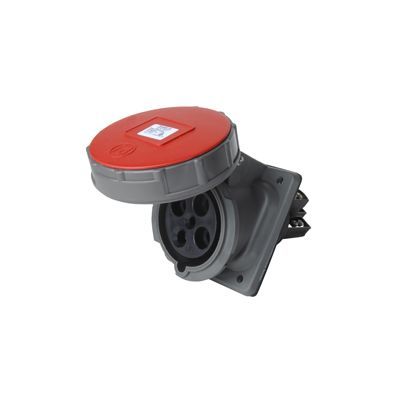

Pass & Seymour PS520R9-W 3-Phase Watertight Pin and Sleeve Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Gray
Pin and Sleeve Devices
7394804
PS520R9W
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Gray
- Dimensions: 4.81 x 4.37 x 4
- Enclosure: IP67
- Frequency Rating: 60/400
- Grade: Industrial
- Material: Nylon/Rubber
- Number of Poles: 4
- Number Of Wires: 5
- Temperature Rating: -50 to 80
- terminal type: Screw
- Type: 3-Phase Watertight
- Voltage Rating: 120/208
Pin and Sleeve Watertight Receptacle, Four pole, Five wire, 20 amp, 3Y, 120/208 volt.
- Features
- Shrouded, nickel plated, solid brass pins provide corrosion protection and excellent conductivity
- An exclusive, hinged cord-grip eliminates loose parts that get lost
- 3000 VAC maximum dielectric voltage withstand voltage
- Stainless steel cover spring, neoprene mounting and sealing gasket, polyamide 6 contact carrier, brass sleeves, zinc plated steel terminal screws material
- 30 deg C temperature rise
- Impact, chemical resistant, non-conductive retaining screw, brass male/female contacts
- 9 clock position of grounding sleeve
