Legrand D0631

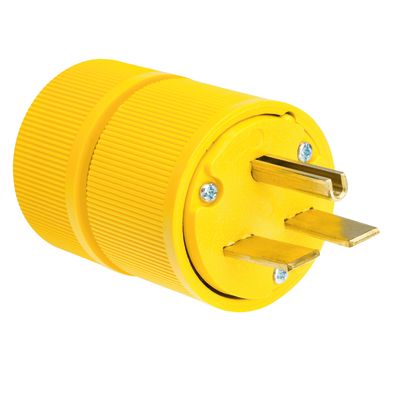

Pass & Seymour D0631 Straight Blade Plug, 250 VAC, 30 A, 2 Poles, 15 Wires, Yellow
Plugs Connectors
1301729
D0631
Legrand
$0.00
/ ea
- Amperage Rating: 30
- Color: Yellow
- Cord Diameter: 0.39 to 0.91
- Dimensions: 2.63 in Dia x 3.57 in L
- Grade: Commercial
- Material: Nylon
- Nema Rating: NEMA 6-30P
- Number of Poles: 2
- Number Of Wires: 15
- terminal type: Threaded
- Voltage Rating: 250
Gator Grip Plug, 2 pole 3 Wire, 30 amp 250V Grounding,Yellow
- Features
- Gator grip, nylon, self locking Dardelet, fast wiring, automatic cord centering
- 2.7 in size
- Gator grip jaws grab cord tighter as you hand turn the housing
- Nylon jaws grip securely, but won't damage insulation
- Self-locking Dardelet thread holds securely and assures firm clamping
- Fast wiring, simply insert stranded conductors into individual wiring chambers and tighten oversized terminal screws
- Transparent wiring chamber cover allows visual inspection of wiring chambers to assure proper connections
- Sloped shoulders won't catch or snap
- Automatic cord centering
- Brilliant high visibility yellow
- Neoprene dust seal helps keep out dirt and debris
- Dead front connector
- 18 to 10 AWG wire size
