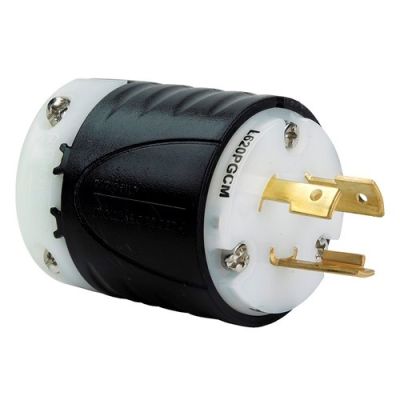

Legrand L620PGCM
Pass & Seymour Turnlok L620-PGCM Ground Continuity Monitoring Heavy Duty Locking Plug, 250 VAC, 20 A, 2 Poles, 3 Wires, Gray
Plugs Connectors
5871423
L620PGCM
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Gray
- Cord Diameter: 0.385 to 1.15
- Dimensions: 4.5 in L x 3.3 in W x 2.7 in H
- Grade: Industrial
- Material: Nylon/Rubber
- Nema Rating: NEMA L6-20P
- Number of Poles: 2
- Number Of Wires: 3
- Type: Ground Continuity Monitoring Heavy Duty
- Voltage Rating: 250
20A 250V Locking Ground Continunity Monitoring GCM Plug NEMA L6-20P
- Features
- Integral indication of ground continuity and power status
- Continuous monitoring enhances personnel safety and adds convenience
- Dual, bright LED indicators with 360 deg visibility
- Green LED indicate proper ground continuity and power status
- Red LED's indicate ground continuity loss or reversed polarity
- No LED indicates open hot, open neutral or hot to ground cross
- Hot to ground cross will be indicated by a green and red LED
- NEMA configurations always visible for fast identification without disconnecting
- Exclusive neoprene dust shield on devices seals cable entry
- Chemical and impact resistant nylon housing features horizontal, easy grip ribs on back body
- Exclusive, rugged 2-piece cord-grip (15 A only) accepts a wide range of cord widths
- Provides uniform pressure for superior retention of conductors
- Recessed cord-grip screw reduces screwdriver slippage, improves safety
- Quick-thread tri-drive assembly and cord-grip screws come backed-out and ready-to-wire
- Color coded terminal screws are backed-out for fast installation
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
