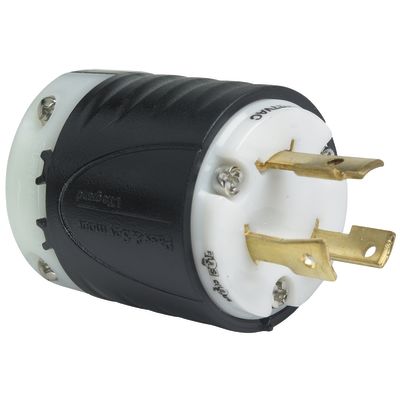

Legrand L730P

Pass & Seymour Turnlok L730-P Locking Plug, 277 VAC, 30 A, 2 Poles, 3 Wires, Black/White
Plugs Connectors
181634 L730P
Legrand
$0.00 / ea

  • Amperage Rating: 30
  • Color: Black/White
  • Cord Diameter: 2.2
  • Dimensions: 2.2 in Dia x 3.75 in L
  • Grade: Commercial
  • Material: Thermoplastic
  • Nema Rating: NEMA L7-30P
  • Number of Poles: 2
  • Number Of Wires: 3
  • Voltage Rating: 277
Turnlok Plug 3wire 30amp 277volt
  • Features
  • Quick-thread assembly screws and cord-grip screws come backed-out and ready-to-wire
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock
  • Double dovetail design provides superior protection against cord pull-out forces
  • Impact and corrosion resistant durable nylon 6 shell material
  • Rounded back contour reduces snags and hang-ups on the job site
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal
  • Visible stamped NEMA configuration and device rating
  • New design external cord grips provide visible assurance of safe and proper cord retention
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber
  • Black back, white front body
