Legrand PLS1820FW

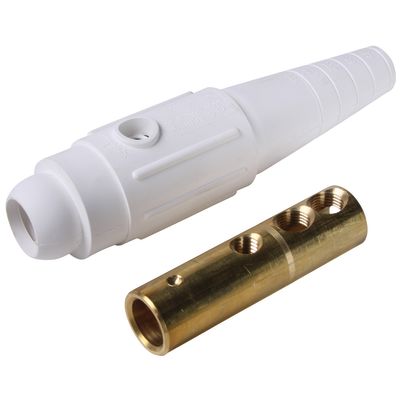

Pass & Seymour PLS1820FW 18 Series 1-Pole Cam-Type Weatherproof In-Line Connector, 600 VAC, 400 A, 2 to 2/0 AWG Wire, Female Connection, NEMA 3R/4 NEMA Rating
Plugs Connectors
7728582
PLS1820FW
Legrand
$0.00
/ ea
- Amperage Rating: 400
- Color: White
- Connection Type: Female
- Dimensions: 6.8 in L
- Housing Material: Thermoplastic Elastomer
- Mounting Type: Panel
- Nema Rating: NEMA 3R/4
- Series: 18 Series
- Specifications: Type SC/SCE/SCT/W Individual Copper Wire Conductor
- Temperature Rating: -40 to 75
- Type: 1-Pole Cam-Type Weatherproof
- Voltage Rating: 600
- Wire size: 2 to 2/0
Pass & Seymour In-Line Connector, 1-Pole Cam-Type Weatherproof, Series: 18 Series, 600 VAC, 400 A, 2 to 2/0 AWG Wire, Female Connection, Thermoplastic Elastomer Housing Material, NEMA 3R/4 NEMA Rating, Panel Mounting, Specifications: Type SC/SCE/SCT/W Individual Copper Wire Conductor, -40 to 75 deg C, White, 6.8 in L Dimensions
- Features
- Interchangeable with Canadian cam devices from other manufacturers
- Designed specifically for sea way cable
- Double set screws for premium wire retention
- Locking screw prevents contact from rotating inside housing
- Ball nose design achieves NEMA 3R, four rating
- Accepts 6 through 4/0 AWG wire
