Legrand PS20MBR
Pass & Seymour PS20MBR 16 Series 1-Pole Cam-Type In-Line Connector, 600 VAC, 400 A, 2 to 2/0 AWG Wire, Male Connection, NEMA 3R/4 NEMA Rating
Plugs Connectors
7049542
PS20MBR
Legrand
$0.00
/ ea
- Amperage Rating: 400
- Color: Red
- Connection Type: Male
- Contact Material: Brass
- Dimensions: 6-7/8 in L
- Housing Material: Thermoplastic Elastomer
- Nema Rating: NEMA 3R/4
- Series: 16 Series
- Specifications: Type SC/SCE/SCT/W Individual Copper Wire Conductor
- Temperature Rating: -40 to 75
- Type: 1-Pole Cam-Type
- Voltage Rating: 600
- Wire size: 2 to 2/0

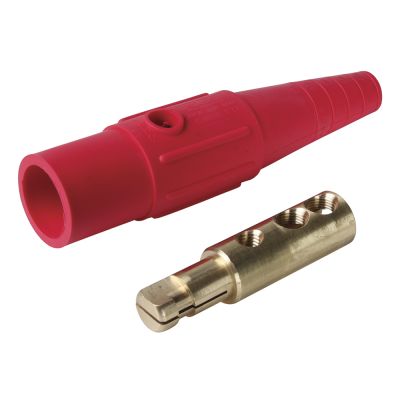

400A 600V, Male Cam Device Plug, Cable Size #2-2/0, Red
- Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA type 3R and 4 integrity
- Heavy duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy duty hex set screws allow greater termination torque
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce splaying
