Legrand PS40FBY

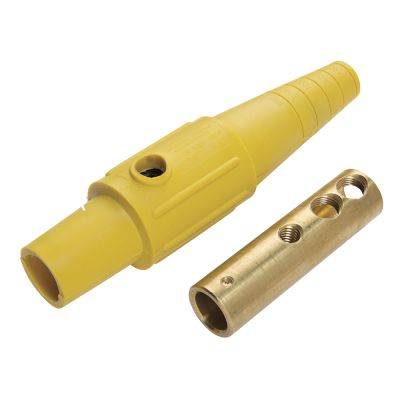

Pass & Seymour PS40FBY Cam-Type Female In-Line Connector, 600 VAC, 400 A, 1 Poles, Yellow
Plugs Connectors
6909593
PS40FBY
Legrand
$0.00
/ ea
- Amperage Rating: 400
- Color: Yellow
- Dimensions: 6.8 in L
- Grade: Commercial/Industrial
- Material: Thermoplastic Elastomer
- Nema Rating: NEMA 3R/4
- Number of Poles: 1
- Series: 16 Series
- Temperature Rating: -40 to 75
- terminal type: Copper Wire
- Type: Cam-Type Female
- Voltage Rating: 600
Female Plug #2/0-4/0 400A 600V Yellow
- Features
- Thermoplastic elastomeric housing for outstanding impact and chemical resistance
- Heavy duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy duty hex set screws allow greater termination torque
- 2/0 to 4/0 AWG wire
- Exceptional seal for maintaining NEMA type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Copper wire provides quality strain relief
- Copper shim bundles wire strands to reduce splaying
