Legrand PS40FRSBBL

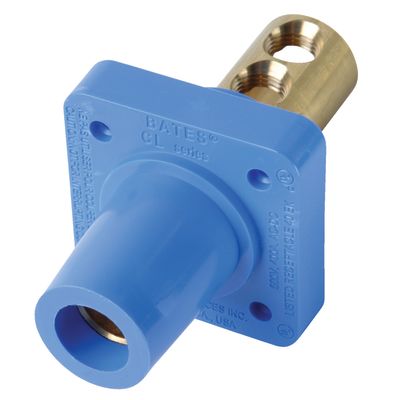

Pass & Seymour PS40FRSBBL 16 Series Cam-Type Female Single Pole Receptacle, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded Stud Connection, NEMA 3R/4 NEMA Rating
Plugs Connectors
7637603 PS40FRSBBL
Legrand
$0.00 / ea

Legrand PS40FRSBBL
  • Amperage Rating: 400
  • Color: Blue
  • Connection Type: Threaded Stud
  • Dimensions: 1-1/8 in D
  • Housing Material: Nylon
  • Mounting Type: Panel
  • Nema Rating: NEMA 3R/4
  • Series: 16 Series
  • Specifications: Type SC/SCE/SCT/W Individual Copper Wire Conductor
  • Temperature Rating: -40 to 75
  • Type: Cam-Type Female
  • Voltage Rating: 600
  • Wire size: 2 to 4/0
Pass & Seymour Single Pole Receptacle, Cam-Type Female, Series: 16 Series, 600 VAC, 400 A, 2 to 4/0 AWG Wire, Threaded Stud Connection, Nylon Housing Material, NEMA 3R/4 NEMA Rating, Panel Mounting, Specifications: Type SC/SCE/SCT/W Individual Copper Wire Conductor, -40 to 75 deg C, Blue, 1-1/8 in D Dimensions
QTY
Add to Wishlist
  • Features
  • Nylon housing provides outstanding impact and chemical resistance
  • Heavy duty brass male and female contacts provide a superior and consistent means of conductivity
  • Heavy duty hex set screws allow greater termination torque
