Legrand PS460MIR5W

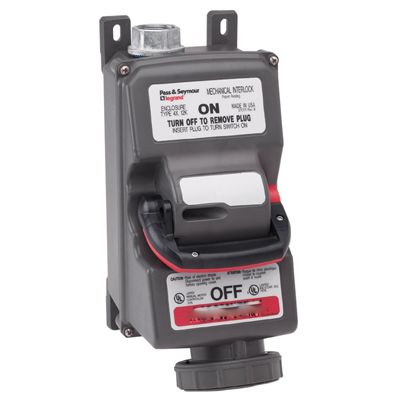

Pass & Seymour PS460MIR5-W 3-Phase Non-Fusible Watertight Mechanical Interlock Receptacle, 600 VAC, 60 A, 3 Poles, 4 Wires
Plugs Connectors
7034136
PS460MIR5W
Legrand
$0.00
/ ea
- Amperage Rating: 60
- Color: Black
- Dimensions: 14-1/4
- Enclosure: NEMA 4X/12K/IP67
- Hub Size: 1-1/4
- Material: Thermoplastic
- Mounting: Threaded
- Number of Poles: 3
- Number Of Wires: 4
- Power Rating: 40
- Type: 3-Phase Non-Fusible Watertight
- Voltage Rating: 600
Triple pole, Four wire, Non-Fusible Mechanical Interlock Receptacle. 60 amp, 3, 600 vac.
- Features
- Top or bottom feed offer installation flexibility and eliminate the need for drilling and plugging that may nullify the NEMA 4X enclosure rating
- Heavy duty, steel geared switch mechanism provides enhanced durability and extra long service life
- Adjustable mounting feet provide optimum flexibility when mounting to equipment and walls
- Heavy duty, lever style switch handle ensures a firm grip, even with wet, greasy hands
- Patent pending, tamper resistant activating assembly and cover integral switch mechanism protect against unauthorized overrides, ensuring operator safety
- Nonconductive, watertight, corrosion and impact resistant Valox® enclosure ensures NEMA 4X and 12 ratings to withstand the harshest industrial environments
- No closure plug kits required
- -50 to 60 deg C operating temperature
- External adjustable feet with five (5) positions mounting
- 10 A at 600 VAC, 1NO-1NC auxiliary contacts, 15000 mechanical operation cycles, 3000 VAC minimum dielectric voltage, 600 VAC rams maximum working voltage
- Valox® 357 enclosure cover, base and switch handle, neoprene enclosure gasket and switch handle seal, brass shaft
- IEC clock position 5 configuration
