Legrand 1597HGTRGRY

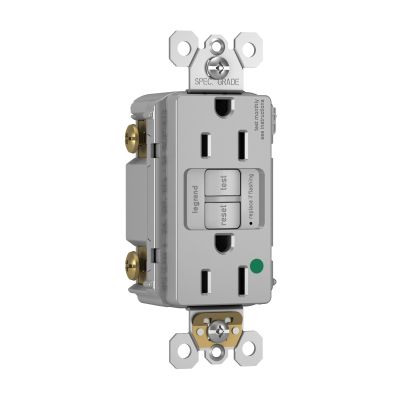

Pass & Seymour Radiant 1597HGTRGRY Duplex Self-Test Tamper-Resistant GFCI Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Gray
Receptacles
7459423
1597HGTRGRY
Legrand
$0.00
/ ea
- Amperage Rating: 15
- Color: Gray
- Dimensions: 1.03 in L x 1.73 in W x 4.2 in H
- Frequency Rating: 60
- Grade: Commercial/Hospital
- Horsepower: 1/2
- Material: Thermoplastic
- Nema Rating: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Series: 1597HGTR
- Temperature Rating: -35 to 66
- terminal type: Back/Side Wire
- Type: Duplex Self-Test Tamper-Resistant
- Voltage Rating: 125
15A 125V Self Test GFCI Hospital Grade Tamper Resistant Gray
- Features
- Class A rated GFCI
- Auto-ground clip assures a positive ground to metal box, meets 2015 UL requirements
- Thinner than competitor's GFCI receptacle, leaves more room for wires in the box
- Nylon face and body, 0.03 in brass contacts, 0.05 in zinc plated steel mounting strap, steel 8 to 32 terminal screws, steel hex head grounding screw
- Feed-through wiring configuration allows GFCI to protect downstream receptacles
- Prevents line load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
- Exceeds UL 943 voltage surge requirements, survives 100x the required UL 3-gang kA/6 kV voltage surge test cycles
- Side or internal screw pressure plate back wire with 14 to 10 AWG solid or stranded copper wire
- High Impact-resistant thermoplastic construction
- Ground screw has back wire clamp for easy installation, two back wire holes per terminal
- 10 kA short circuit rating, 102 to 132 VAC supply voltage range
- Mounting screws are shipped captive in the device and wallplate for easier installation
- Extra long strap, button colors match the device face, dual direction test and reset buttons
- Withstands 1500 VAC minimum dielectric, 4 to 6 mA trip level
- 0.025 s nominal trip time
- 95% maximum humidity
- 5 +/- 1 mA trip threshold, 20 A feed-through capacity
- Zinc-plated steel flat head mounting screws, nylon test/reset buttons, thermoplastic tamper-resistant shutter
- 14 to 10 AWG solid or stranded copper conductor only terminal accommodation
