Legrand 5362ALA

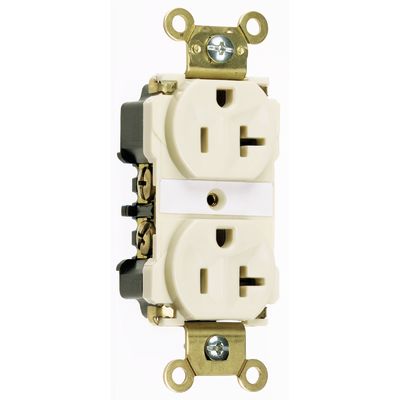

Pass & Seymour 5362ALA Duplex Extra Heavy Duty Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Receptacles
6832934
5362ALA
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Light Almond
- Dimensions: 1.625 in L x 0.9 in W x 3.281 in H
- Grade: Industrial/Specification
- Material: Nylon
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Back/Side Wire
- Type: Duplex Extra Heavy Duty
- Voltage Rating: 125
Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back and, Side Wire 20amp 125volt Light Almond
- Features
- 1-piece brass mounting strap with integral ground
- Auto-ground clip assures positive ground
- 2-drive screws anchor strap to back body and face
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- 0.036 in THK, brass triple wipe power contacts for lasting retention
- Impact-resistant nylon face and back body
- Oversized #10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw pressure plate back wire clamp-on ground terminal for faster, easier installation
- External screw pressure plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection
- Line terminals accept 14 to 10 AWG stranded or solid copper clad conductors
- Strap tabs wrap-around and lock down on face to prevent strap from separating from face and back body
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- Wattage of electrical power is expressed in amperage and voltage
- Wall mounting
- 14 to 10 AWG wire
