Legrand 5850I

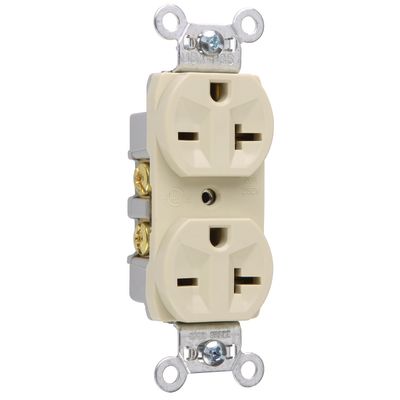

Pass & Seymour 5850I 3-Phase Duplex Straight Blade Receptacle, 250 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Receptacles
7153209
5850I
Legrand
$0.00
/ ea
- Amperage Rating: 20
- Color: Ivory
- Dimensions: 4.25 in H x 1.25 in W x 1.81 in D
- Grade: Commercial/Residential/Specification
- Material: Thermoplastic
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- terminal type: Side Wire
- Type: 3-Phase Duplex
- Voltage Rating: 250
Commercial Spec Grade Duplex Receptacle Side Wire 20amp 250volt Ivory
- Features
- Corrosion resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- 0.032 in THK brass triple wipe power contacts for lasting retention
- Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
- Impact resistant nylon face and thermoplastic back body
- Accepts 14 to 10 AWG solid or stranded copper or copper clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- Impact, corrosion resistant, circuit label on face, auto-ground clips
- Wall mounting
- 14 to 10 AWG wire size
