Legrand 8200HRED

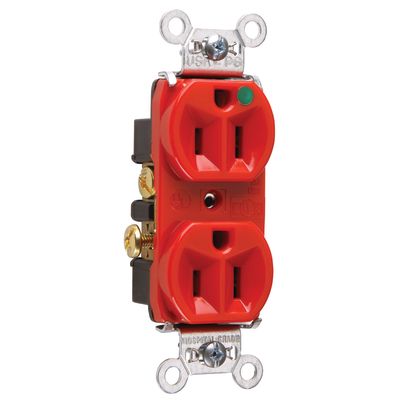

Pass & Seymour 8200HRED Compact Duplex Heavy Duty Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Red
Receptacles
468209
8200HRED
Legrand
$0.00
/ ea
- Amperage Rating: 15
- Color: Red
- Dimensions: 1.322 in L x 0.78 in W x 3.281 in H
- Grade: Commercial/Hospital
- Material: Nylon
- Nema Rating: NEMA 5-15R
- Number of Poles: 2
- Number Of Wires: 3
- Temperature Rating: -40 to 60
- terminal type: Back/Side Wire
- Type: Compact Duplex Heavy Duty
- Voltage Rating: 125
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and, Side Wire 15amp 125volt Red
- Features
- Impact-resistant nylon face
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- Corrosion-resistant, zinc plated steel strap is locked in
- Internal screw pressure plate back wire and side wire line terminals accept 14 to 10 AWG copper or copper clad conductors
- High strength thermoplastic back body
- Tri-drive terminal and mounting screws
- 1-piece heat treated triple wipe brass power contacts
- Compact design for easy installation
- Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment
- Withstands 2000 VAC minimum dielectric voltage
- Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
- -40 to 60 deg C without impact continuous operating temperature
